How To Install Blinds & Shades
Universal Step before Installation

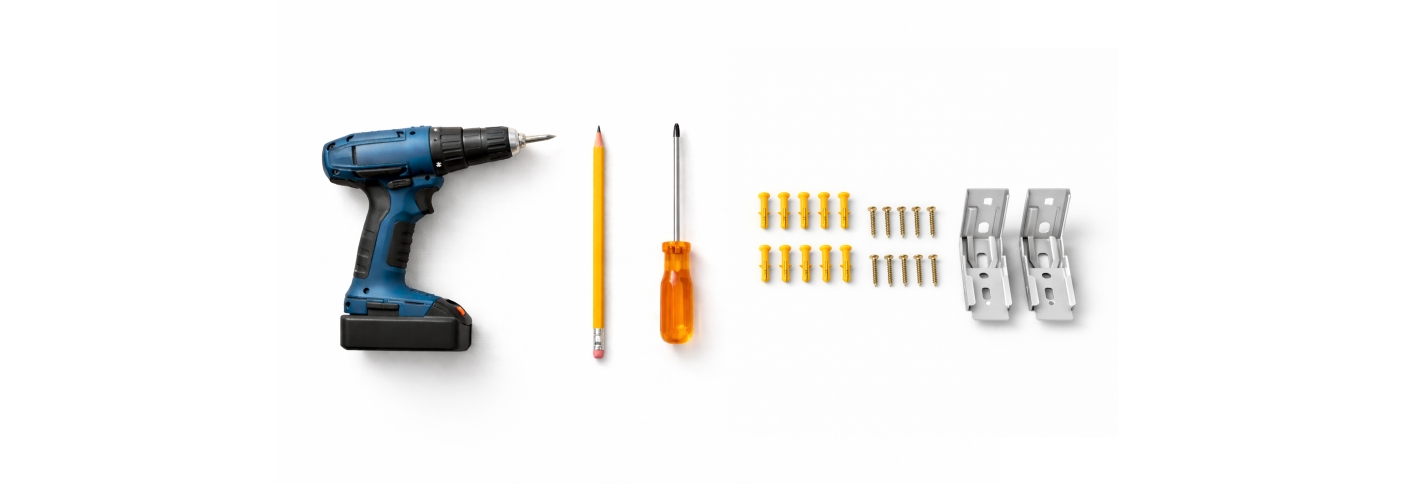

Step 1: Gather Tools
Step 2: Verify Package Contents
Before you begin installation, please carefully verify the package contents to ensure all necessary components — including screws and brackets — are included and match your order specifications. This step helps ensure a smooth and successful setup process.
Step 3: Confirm Mounting Location
Choose the optimal mounting location for your motorized shades:
- Inside Mount: install in the window recess and ensure 2" depth for proper installation.
- If your window frame is less than 2 inches deep and you still want to install it inside, please contact our staff to customize a plan for you: zuuyarblinds@gmail.com
- Outside Mount: make sure the installation surface is flat and can be drilled securely.
Method One: Inside Mount
Top Mount
If you opt for an inside mount and your window frame width allows, top mounting is the optimal choice.

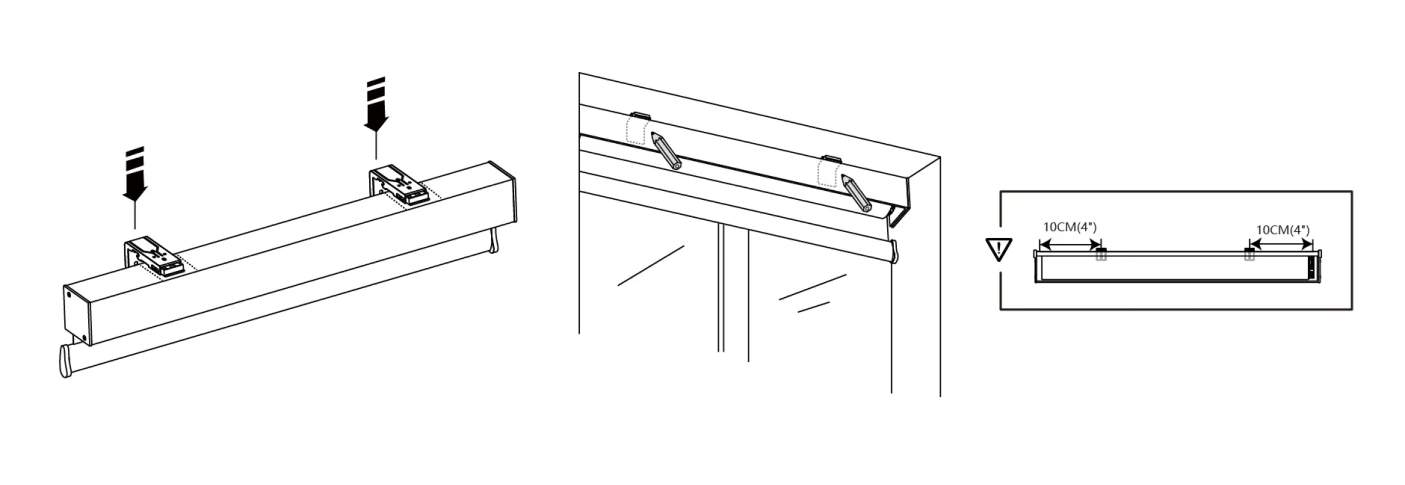

Step 1: Mark Positions
- Determine the position for the brackets on the wall and the shade. The optimal position from the side caps to the center of each bracket is 4 inches.
- Mark the screw locations with a pencil.

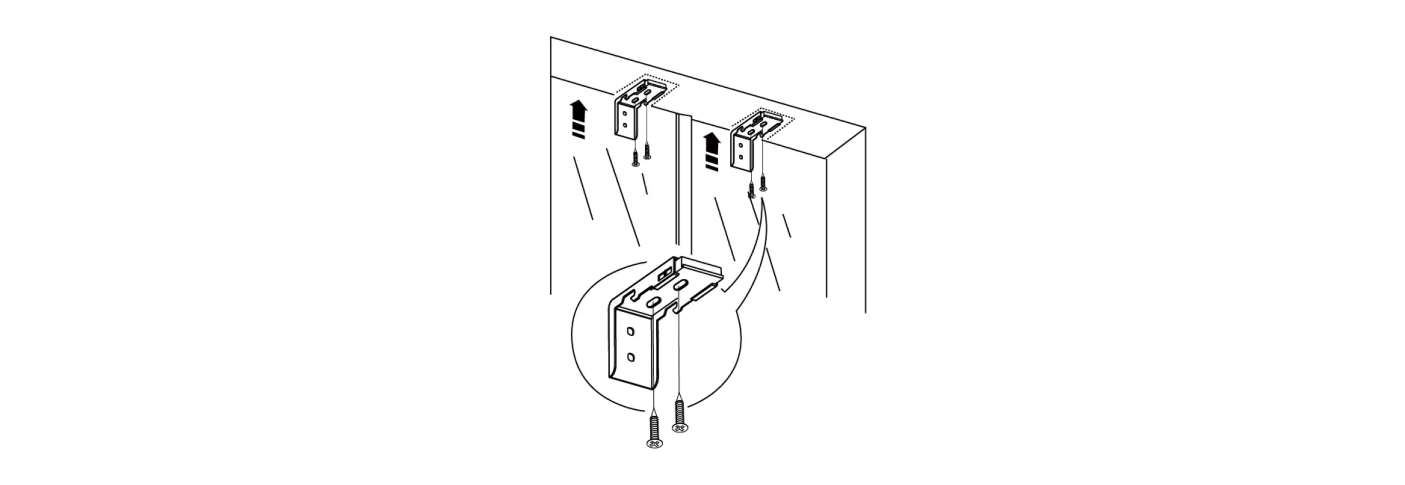

Step 2: Install the Brackets
- Drill pilot holes through the marked bracket positions using a power drill.
- Insert the expansion sleeve into the drilled hole.
- Place the brackets over the hole and insert the expansion bolt.
- Tighten the bolt with a screwdriver to secure the brackets.

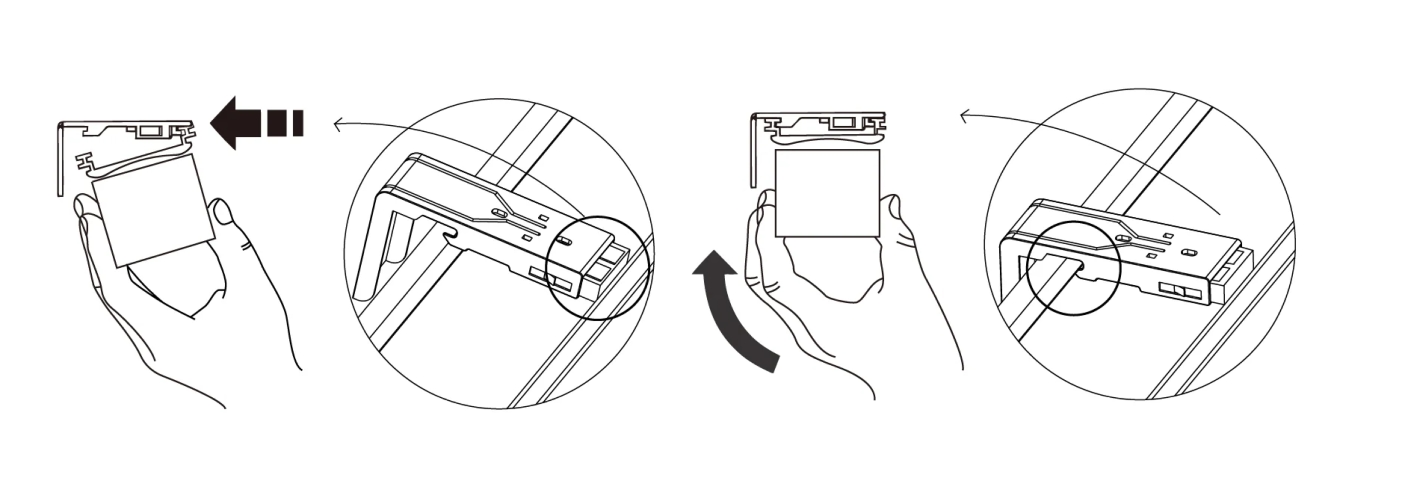

Step 3: Install the Shade
- Insert the front rebound part of the bracket into the shade valance.
- Hook the rear end of the bracket into place.
Side Mount
If you choose an inside mount but find that the window frame depth is insufficient for bracket installation, consider opting for a side mount.
Step 1: Mark Positions
- Determine the position for the extension brackets on the side wall.
- Mark the screw holes on the side wall with a pencil.

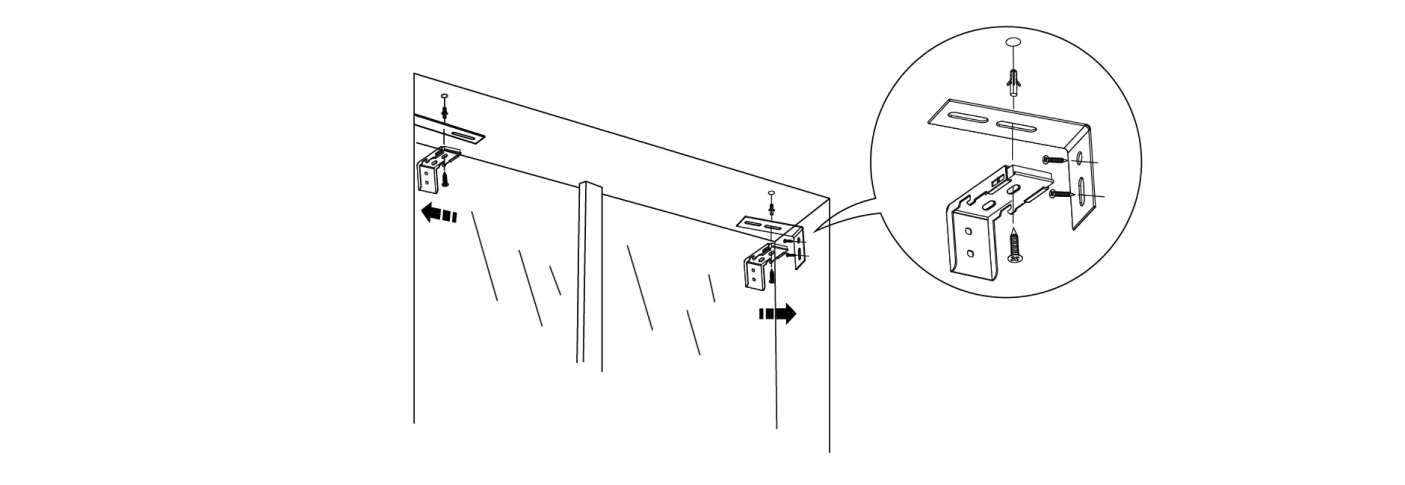

Step 2: Install the Brackets
- Install the extended brackets on both sides of the wall.
- Fix the installation brackets and extension brackets with screws.
Note: To prevent light leakage at the top after installation, keep the extended brackets as close to the top of the window frame as possible, and make sure the left and right brackets are positioned horizontally.

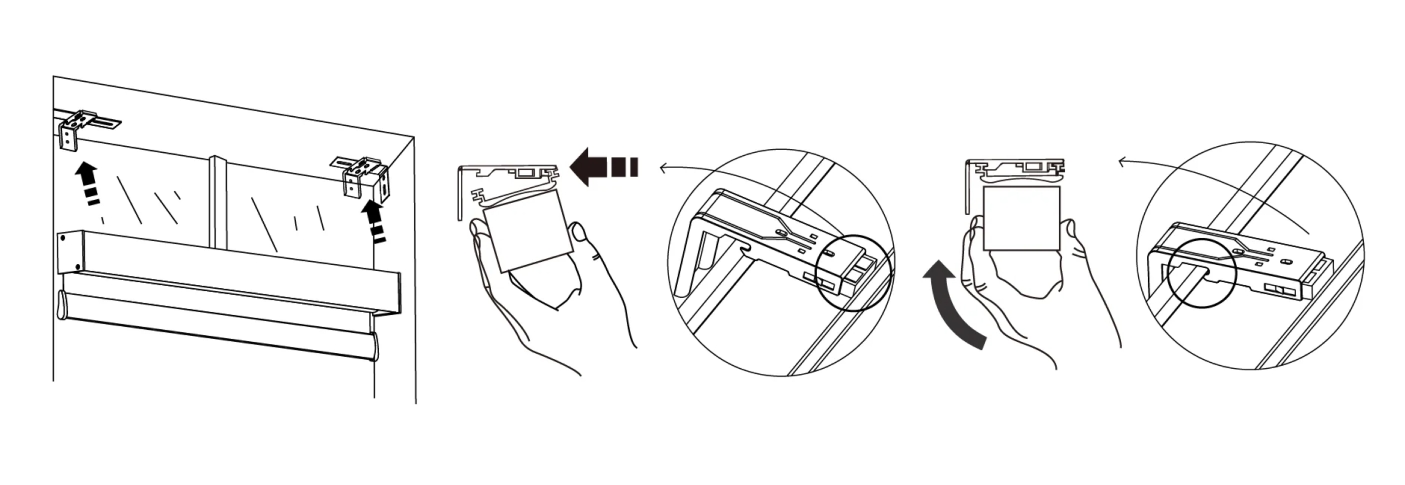

Step 3: Install the Shade
- Insert the front rebound part of the bracket into the shade valance.
- Hook the rear end of the bracket into place.
Method Two: Outside Mount
Top Mount
If you opt for an outside mount and the space allows, top mounting is the optimal choice.

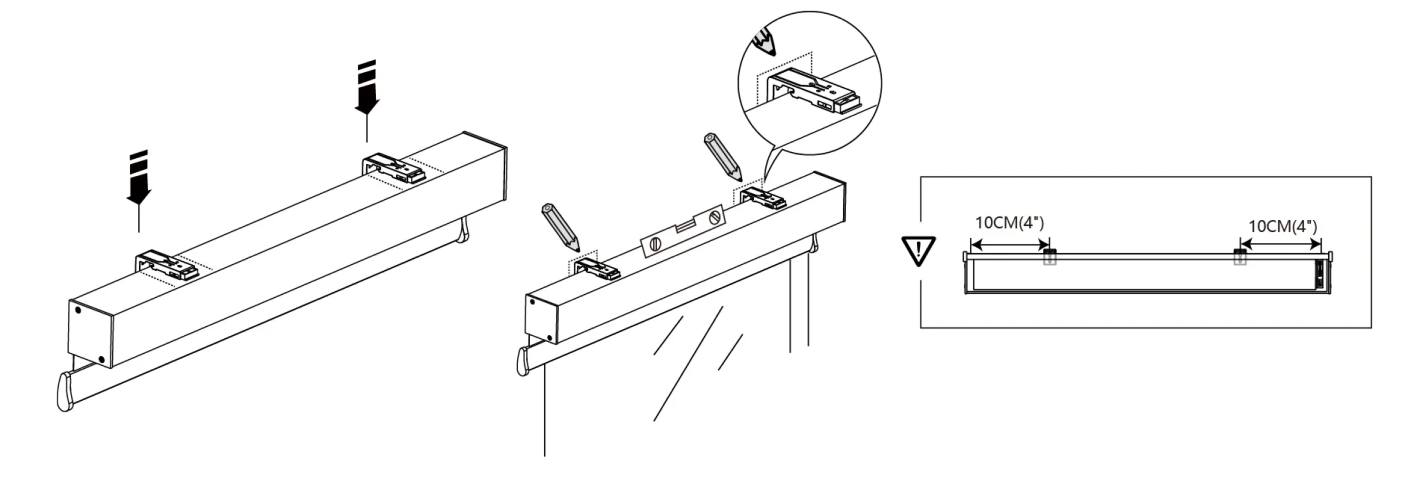

Step 1: Mark the Position
- Determine the position for two brackets above the window frame and the shade. The optimal position from the side caps to the center of the two brackets is 10 cm or 4 inches.
- Align both brackets horizontally.
- Mark the screw holes on the wall-facing side of the bracket with a pencil.

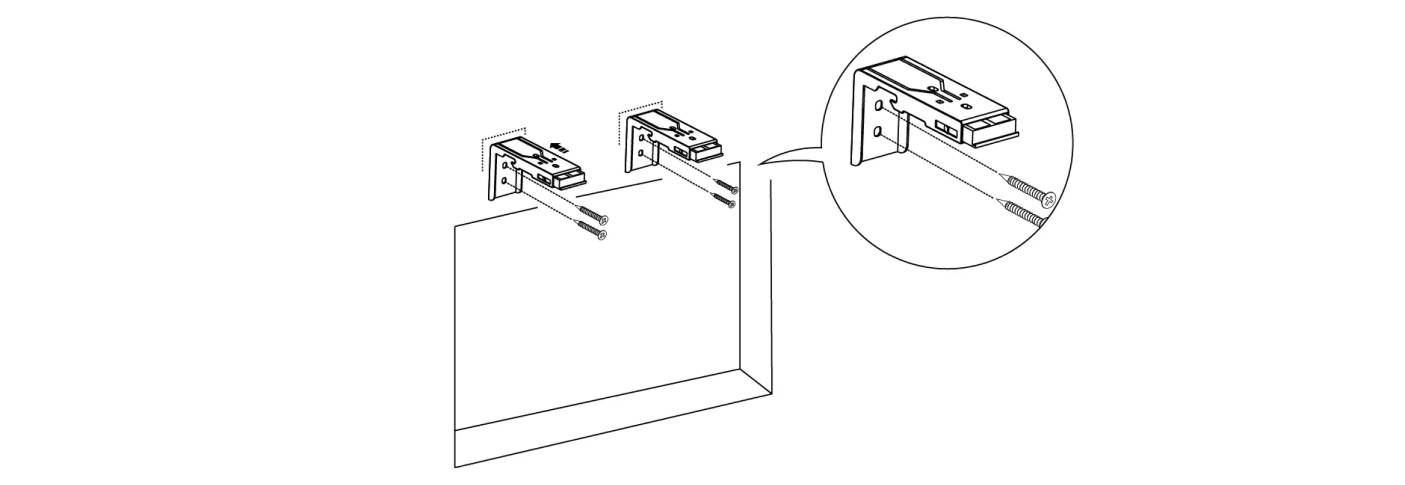

Step 2: Install the Brackets
- Drill pilot holes through the marked bracket positions using a power drill.
- Insert the expansion sleeve into the drilled hole.
- Place the brackets over the hole and insert the expansion bolt.
- Tighten the bolt with a screwdriver to secure the brackets.

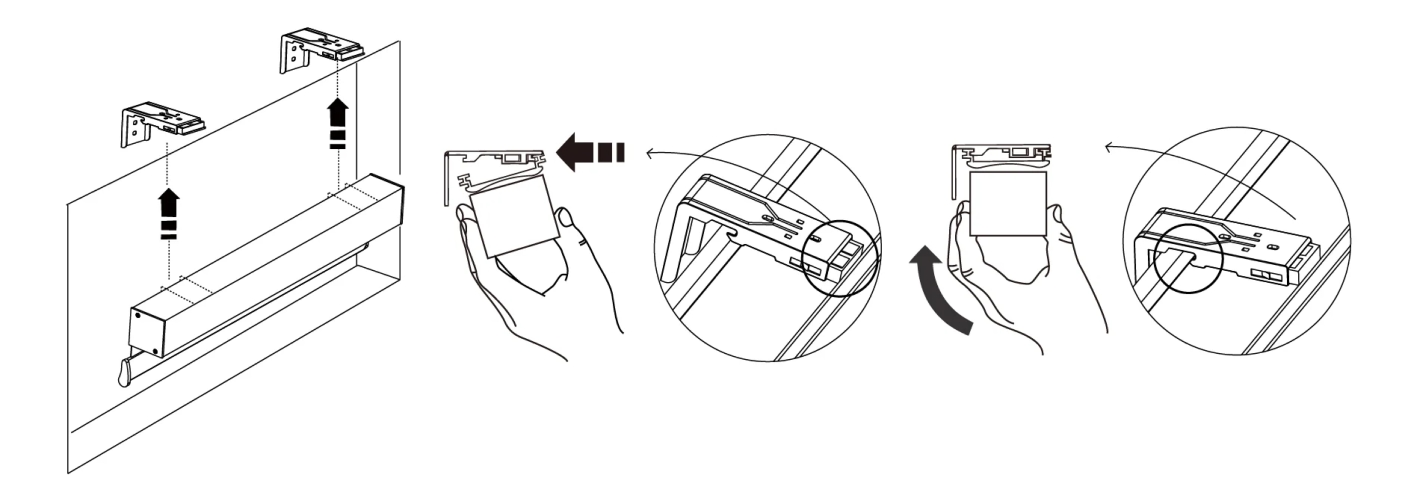

Step 3: Install the Shade
- Insert the front rebound part of the bracket into the shade valance.
- Hook the rear end of the bracket into place.
